How Whistles Work

How a Whistle Produces Sound

A whistle is a precisely engineered instrument. The tone it produces — and how reliably it produces it — is determined by the geometry of its internal chamber, the air channel at the mouthpiece, and the material it's made from. Here's the physics behind how a metal whistle works.

The Basic Principle: An Air Jet and a Tone Hole

When you blow into a whistle, you force a narrow stream of air across a tone hole — an opening in the whistle body. This air jet oscillates: it alternately flows in and out of the tone hole, driven by the pressure waves bouncing back from inside the chamber. Those oscillations create the sound wave you hear as a whistle tone.

The frequency of the oscillation — the pitch — is determined by the resonant frequency of the air column inside the chamber. A larger chamber produces a lower pitch; a smaller chamber produces a higher pitch. The relationship isn't linear, which is why whistle design requires careful calibration of chamber volume, tone hole size, and air channel geometry.

The Pea: Where the Trill Comes From

Most people know that the ball inside a whistle creates the trill — the warbling quality that makes a referee's or coach's whistle instantly recognizable and carries further in a crowd than a pure tone. Here's how it works.

The pea — a small sphere of cork or synthetic material — sits loose inside the chamber. When you blow the whistle:

1. Air pressure from your breath moves the pea toward the tone hole.
2. The pea partially or fully obstructs the opening, interrupting the air jet.
3. The pressure drop causes the pea to fall back.
4. The cycle repeats, typically 25–100 times per second depending on breath pressure and pea/chamber geometry.

This rapid interruption of the airstream creates amplitude modulation — a pulsing variation in the sound level. The brain perceives this pulsed tone as louder and more attention-grabbing than a steady tone of the same decibel level. The trill is not a feature added on top of the whistle; it is the fundamental operating principle of the instrument.

Why 126 dB?

Sound pressure level is measured in decibels (dB). Our brass whistles produce 126 dB at 1 meter under standard test conditions. For reference:

Decibels are a logarithmic scale: 126 dB is not slightly louder than 100 dB, it is approximately 63 times the sound pressure. This output is what allows a coach or referee's whistle to cut through crowd noise in a stadium, a lifeguard's whistle to be heard across a busy pool, or a safety whistle to be heard at distance in an emergency.

The 126 dB output isn't arbitrary — it's the result of the specific chamber volume, tone hole geometry, and material properties of our brass construction. Changing any of those variables changes the output.

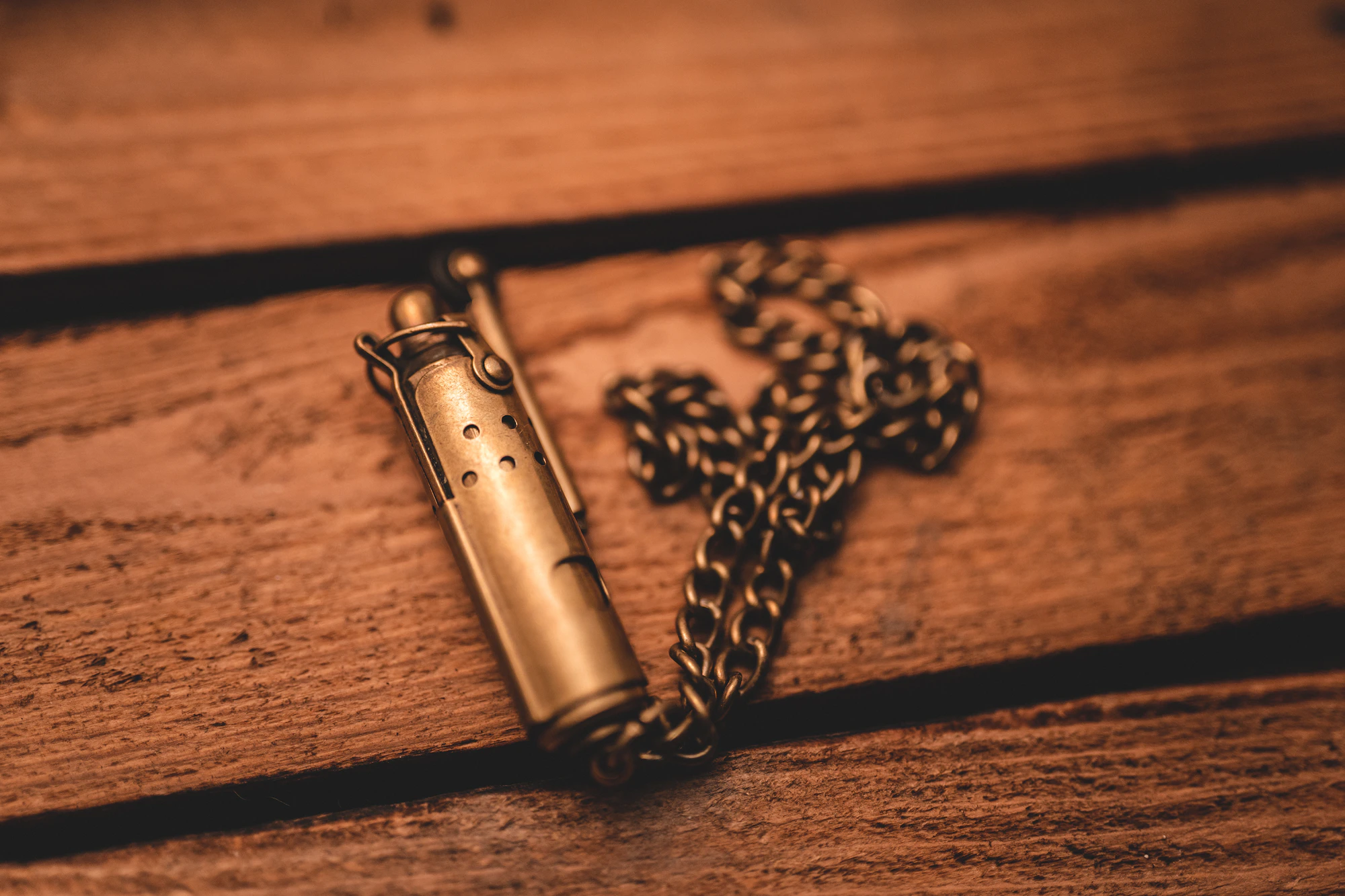

Why Brass Specifically

Brass (copper-zinc alloy) is specified for our whistles rather than stainless steel, aluminum, or plastic for several interconnected reasons:

Acoustic properties. Brass has a density and stiffness that allow the whistle body to flex microscopically in response to pressure waves rather than absorbing them. This contributes to the resonance and projection of the tone. Plastic has fundamentally different acoustic properties — the walls absorb energy that should be going into the sound wave.

Machinability and tolerances. Brass can be stamped and formed to tight tolerances with conventional tooling. The chamber geometry that produces a consistent 126 dB tone requires tight dimensional control. Brass holds those dimensions through the forming process and doesn't spring back the way spring steel does.

Corrosion resistance. Brass does not rust. A pool deck, a football field in rain, a search-and-rescue pack — a brass whistle performs in all of these environments without surface degradation affecting the tone hole or mouthpiece geometry.

Durability over time. Plastic whistles develop hairline cracks under repetitive mechanical stress — being clipped to a lanyard, dropped, blown hard repeatedly. A brass whistle deforms rather than cracks, and minor deformation in the body doesn't affect the acoustic performance the way a crack in a plastic chamber does.

Pitch, Tone, and Performance Variables

The specific pitch of a whistle is set at the design stage by chamber volume and tone hole diameter. Our American Classic, Patriot, and Victory lines are tuned to the same fundamental frequency range, but each is optimized for different use conditions — duration of blow, ambient noise environment, and the specific trill characteristic most useful for the application.

Breath pressure affects the output. A harder blow raises the pitch slightly and increases volume. This is predictable and consistent in a well-made brass whistle; in a plastic whistle with less dimensional consistency, the pitch behavior under varying pressure is less reliable.

Temperature affects pitch slightly: colder air in the chamber means a denser air column and a marginally lower resonant frequency. This effect is small and within operational range for all our products.

The 126 dB output, the reliable trill, and the long service life are all products of the manufacturing precision behind each whistle. Learn how they're made, or visit the factory to see the production process in person. All product lines available at americanwhistle.com.
